PSA oxygen Plants
What is PSA oxygen?
PSA is short for pressure swing adsorption.

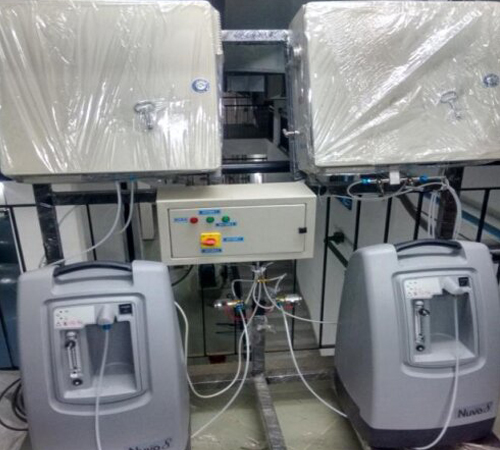

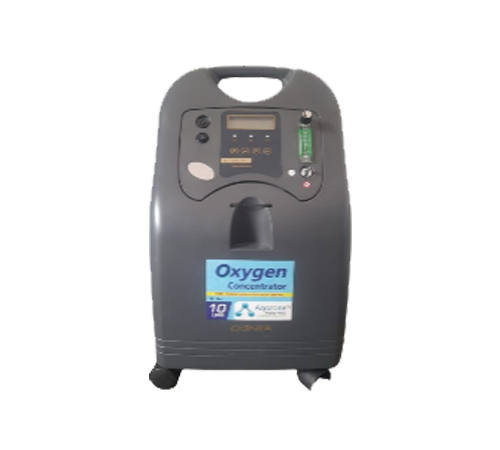

The DeBru series of Portable Oxygen Concentrators has been designed and manufactured with care using our decades of experience to develop a world class Oxygen Concentrator.
It uses only the best components and a well researched process to deliver Oxygen with a purity of 93%
- Quiet operation with sound proof design
- Controls are simple to operate and easy to read
- Immediate indication and alarm if Oxygen output is not as per the desired levels
- Sieve beds are filled completely with Zeolite
- Device dimensions occupies lesser floor space
- Rugged design of the product ensures safe transportation
- Illuminated panel display provides all necessary information with clarity
How does it work?

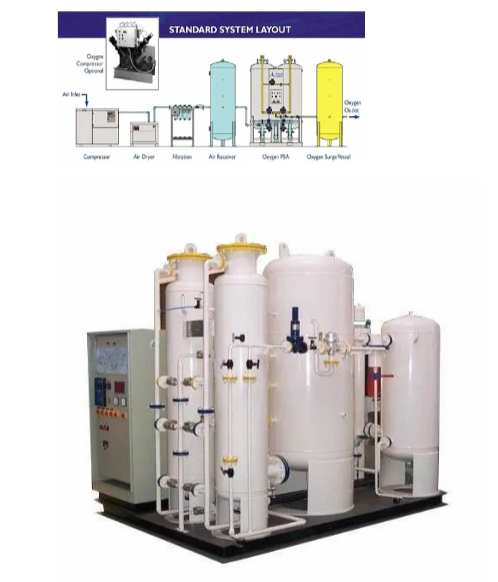

DeBru on-site PSA oxygen plants are based on the well-known PSA technology (PSA means pressure swing adsorption). Two pressurised vessels with zeolite ensure continuous production for separation of oxygen from other gases.
DeBru O 2 generator consists of two pressure vessels storing zeolite. Dry compressed air is blown through a valve to the first vessel where the pressure is built to reach 4 to 8 bar(g). The unwanted gas (N 2 ) is adsorbed by the zeolite during the building of pressure, and the oxygen will pass through to the accumulation tank.
While pressure is building in one vessel, the other vessel is regenerating through a decrease in pressure. This process guarantees a continuous flow. Before the subsequent adsorption or desorption stage, the pressure between the adsorption vessels will be equalised. When pressure decreases in the first vessel, and the zeolite becomes saturated, the waste product is exhausted through the exhaust system. Now the pressure in the second vessel will build up until the pressure between both vessels is once again equalised.
