Air Source Dryers and Heat Pump

Air Source Dryers and Heat Pump


Heatpump is the type of water heating Technology which works on reverse refrigeration,less consume elctricity & gives steady Hot water The hot and pressurized vapour on the discharge side of the compressor is cooled in a heat exchanger called a condenser until it condenses into a high pressure, moderate temperature liquid

  • Compressor
  • Condesor
  • Evaporator
  • Expansion valve
  • We also manuafacture of SS & MS tanks Tank Capacity: 100ltrs to 10,000ltrs.
  • Insulation :Raw cooled insulation.

Advantages


  • 1. Low Maintenance.
  • 2. Easy and flexible installation.
  • 3. Fully automatic.
  • 4. 80% Savings vs other modes of heating.
  • 5. Works in any type of climate.

Applications


  • 1. Houses, Hotels, PG's, Hospitals, Hostels, Airports, Government Offices, and other commercial units.
  • 2. Temperature control of swimming pools

Dryers


An air-source heat pump can provide efficient heating and cooling for your home. When properly installed, an air-source heat pump can deliver up to three times more heat energy to a home than the electrical energy it consumes. This is possible because a heat pump transfers heat rather than converting it from a fuel like combustion heating systems. Air-source heat pumps have been used for many years in nearly all parts of the World, except in areas that experienced extended periods of subfreezing temperatures. However, in recent years, air-source heat pump technology has advanced so that it now offers a legitimate space heating alternative in colder regions

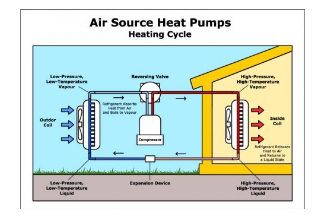

A heat pump's refrigeration system consists of a compressor and two copper or aluminum coils (one indoors and one outside), which have aluminum fins to aid heat transfer. In heating mode, liquid refrigerant in the outside coil removes heat from the air and evaporates into a gas. The indoor coil releases heat from the refrigerant as it condenses back into a liquid. A reversing valve, near the compressor, can change the direction of the refrigerant flow for cooling mode as well as for defrosting the outdoor coil in winter. The efficiency and performance of today's air-source heat pumps is a result of technical advances such as the following: Thermostatic expansion valves for more precise control of the refrigerant flow to the indoor coil Variable speed blowers, which are more efficient and can compensate for some of the adverse effects of restricted ducts, dirty filters, and dirty coils Improved coil design Improved electric motor and two-speed compressor designs Copper tubing, grooved inside to increase surface area.
